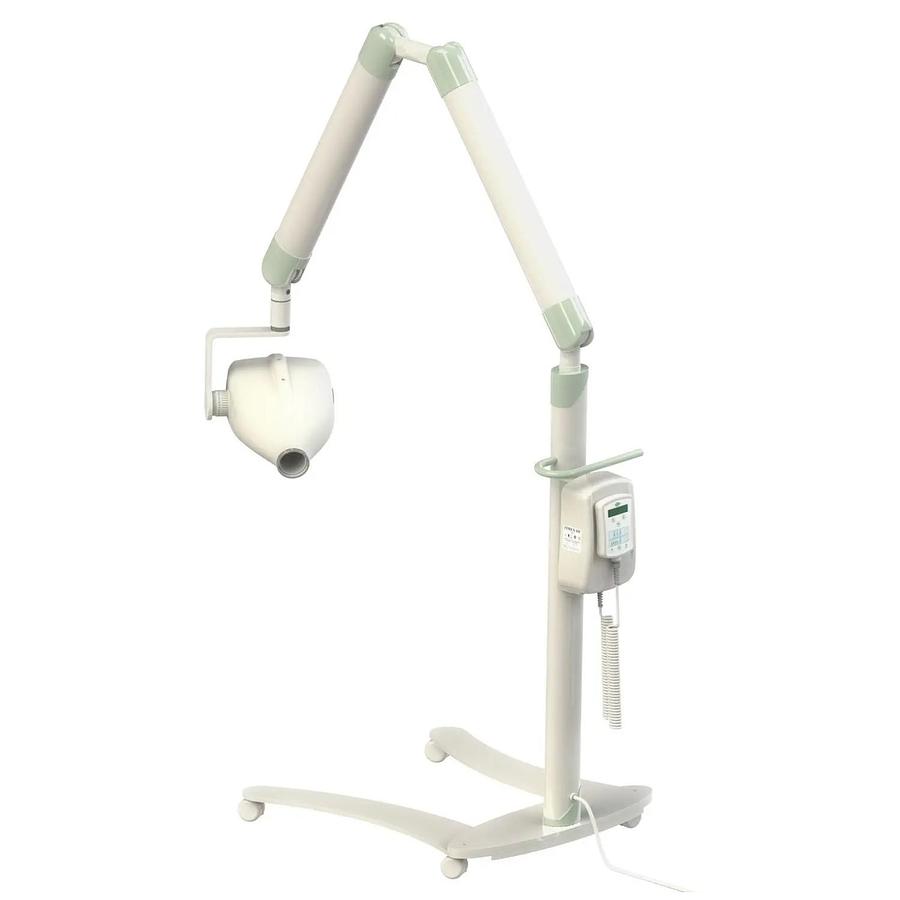

Mobile & Wall-Mount Dental Generator
Mobile & Wall-Mount Dental Generator
Contact us for price
Location:
or
Call (559) 581-2523
Description
Bring precision diagnostics to the patient—anytime, anywhere.
Our Mobile Dental Generator combines power, portability, and performance for on-the-go dental care.
Power
X-Ray
Operation type: Momentary: 2 sec. max
Specifications
| Manufacturer | Medicatech USA® |
| Model | Mobile & Wall-Mount Dental Generator |
| Condition | New |
| Stock Number | SKU000045 |
| Nominal voltage | 110~240 V ± 10% |
| Line frequency | 50/60 Hz |
| Absorbed current | 2.1 A @ 240V~ / 5.2 A @ 110V~ |
| Absorbed power | 500 VA @ 240V~ / 530 VA @ 110V~ |
| Maximum apparent line resistance | ≤0.8 Ohm @ 240V~ / ≤0.4 Ohm @ 110V~ |
| Fuse of the distribution panel F1 | ETF-6.3 A / 250V UL/CSA |
| Main fuse (mobile unit) F2 | F 6.3 A / 250 V 6.3×32 mm UL/CSA |
| High voltage values (kV) | 60 / 65 / 70 kV selectable |
| High voltage accuracy (kV) | ± 10% |
| Anodic current (mA) | 5 mA |
| Anodic current accuracy (mA) | ± 20% |
| Exposure time (s) | 0.01 – 2.0 s according to R'10 scale |
| Exposure time accuracy (s) | ± 10% +1 ms |
| Maximum load | 70 kV 5 mA 2 s |
