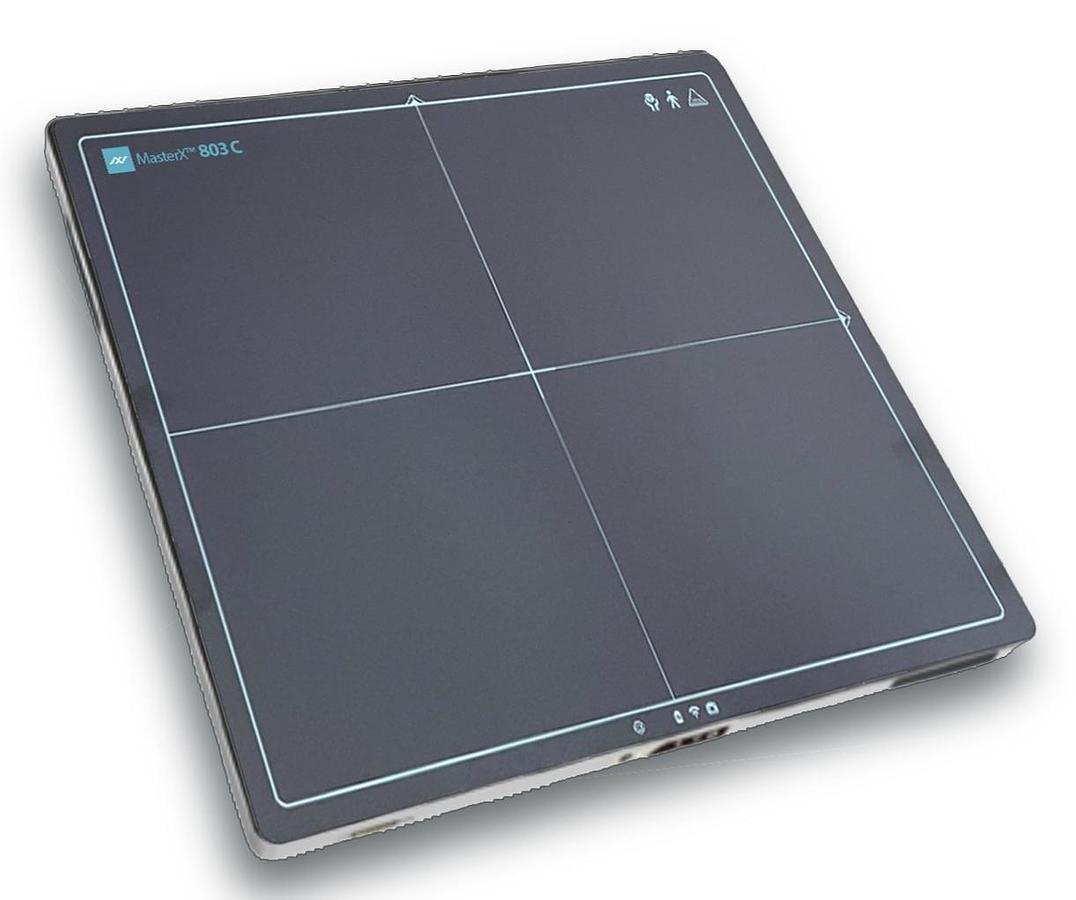

MasterX 803 17x17 Wireless
MasterX 803 17x17 Wireless
Contact us for price
Location:
or
Call (559) 581-2523
Description
Features:
• Ultra low dose
• Self management and monitoring
• Complete diagnostic system
• Easy cleaning (IPX6-rated for water resistance)
Specifications
| Manufacturer | Medicatech USA® |
| Model | MasterX 803 17x17 Wireless |
| Condition | New |
| Stock Number | SKU000042 |
| Outline Dimensions (ISO4090) | 17" x 17" | 460 x 460 x 15 mm |
| Sensor Array | A-Si photodiode |
| Scintillator | CsI |
| FPD Resolution | 3,072 x 3,072 |
| Image Acquisition Time | ≤ 2 sec |
| Preview Time | ≤ 1 sec |
| Cycle Time | ≤ 3.6 sec |
| Pixel Size | 140 um |
| Grayscale | 16 bit |
| Wifi | 802.11ac / 2 antennas / 2s scan display / AP mode |
| Drop Height | 70cm |
| Housing Material | Mg-AI alloy |
| Weight | 3.2 kg |
| Waterproof | 1PX6 |
| Durability (Face Load / Point Load) | 300 / 120 kg |
| Battery Autonomy | 8 Hours |
| Trigger Mode | AEC Mode |
| Log File | Log file, sensor data and other calibration data are available |
| Accessories | Battery / Magnetic connector cable with ethernet and power |
| Operation Temperature / Humidity | 10~35°C / 15~80% |
