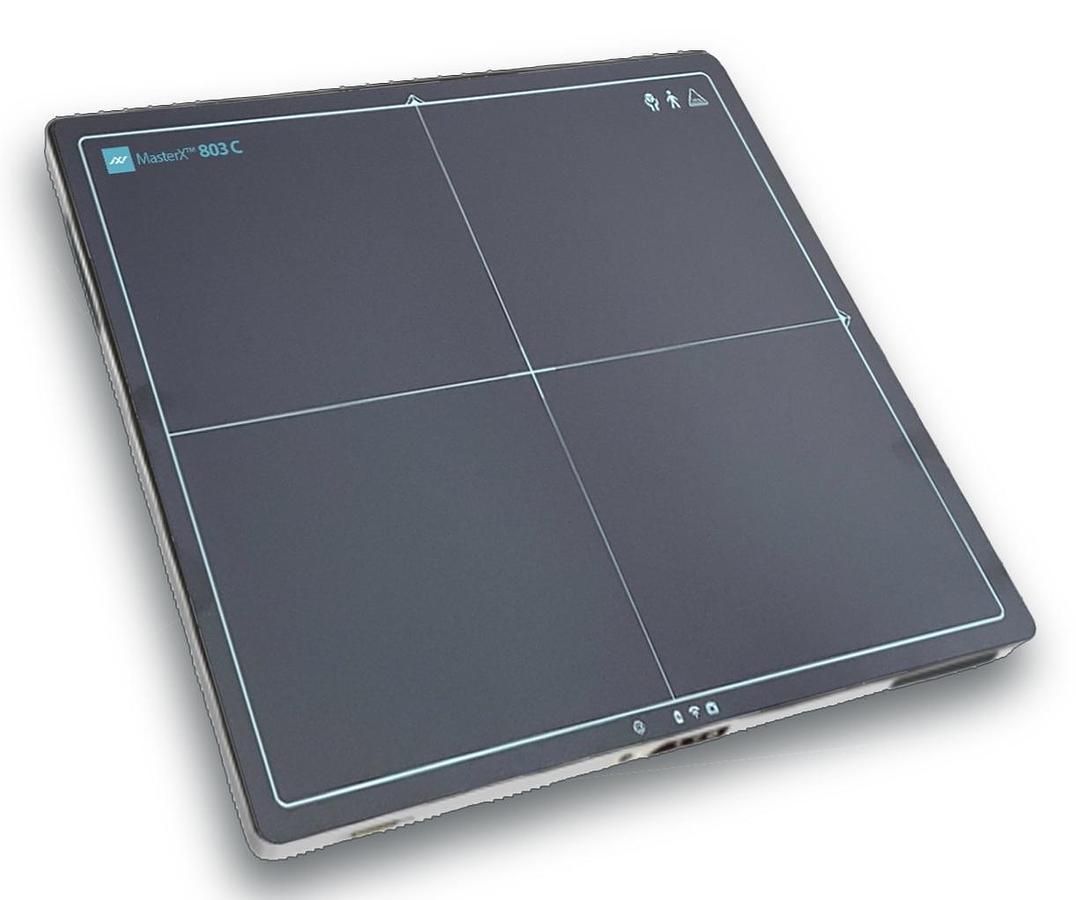

MasterX 803 17x17 Wireless

MasterX 803 17x17 Wireless

Contact us for price

Description

Features: • Ultra low dose • Self management and monitoring • Complete diagnostic system • Easy cleaning (IPX6-rated for water resistance)

Specifications

ManufacturerMedicatech USA®
ModelMasterX 803 17x17 Wireless
ConditionNew
Stock NumberSKU000025
Outline Dimensions (ISO4090)17" x 17" | 460 x 460 x 15 mm
Sensor ArrayA-Si photodiode
ScintillatorCsI
FPD Resolution3,072 x 3,072
Image Acquisition Time≤ 2 sec
Preview Time≤ 1 sec
Cycle Time≤ 3.6 sec
Pixel Size140 um
Grayscale16 bit
Wifi802.11ac / 2 antennas / 2s scan display / AP mode
Drop Height70cm
Housing MaterialMg-AI alloy
Weight3.2 kg
Waterproof1PX6
Durability (Face Load / Point Load)300 / 120 kg
Battery Autonomy8 Hours
Trigger ModeAEC Mode
Log FileLog file, sensor data and other calibration data are available
AccessoriesBattery / Magnetic connector cable with ethernet and power
Operation Temperature / Humidity10~35°C / 15~80%
