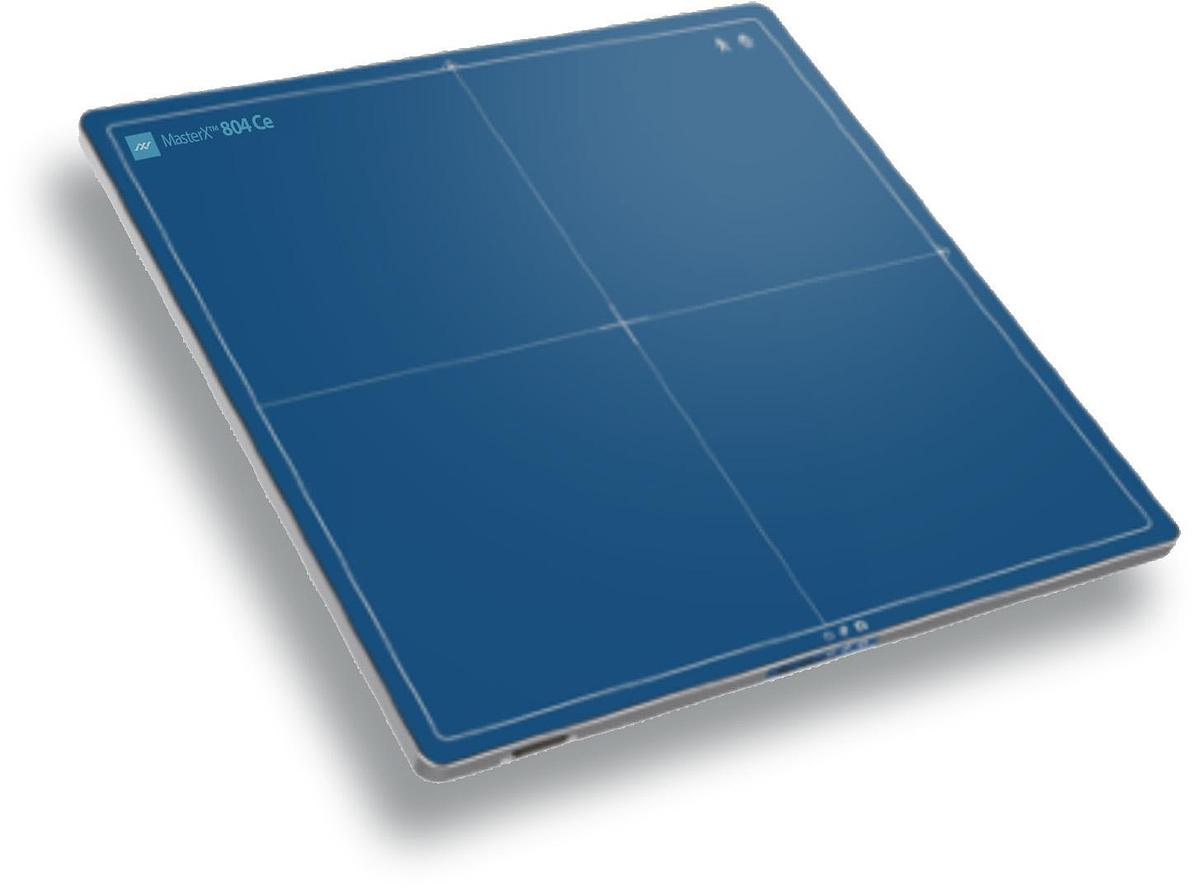

MasterX 804 17"x17" Tethered
MasterX 804 17"x17" Tethered
Contact us for price
Location:
or
Call (559) 581-2523
Description
Features:
• 17" 17" Cesium Tethered, cassette sized flat panel DR
• 17×17 Active area (Real Image Size), Gigabit Ethernet (LAN Cable)
• Resolution 3,072 x 3,072 / 7.1 MP
• Overall Dimensions: 460 x 460 x 15.5 mm
• 16-bit depth – 65,535 shades of gray
• CsI Direct Deposition, low dose Imaging
• 140μm Pixel Pitch
• Lossless AED
• IP53 rated panel – dust and water resistant
• Weight 9.5 lb
• 5-year Manufacturer's parts warranty on DR panel
Specifications
| Manufacturer | Medicatech USA® |
| Model | MasterX 804 17"x17" Tethered |
| Condition | New |
| Stock Number | SKU000026 |
| Model Note | 804 Cesium, Ethernet-Tethered Only |
| Outline dimensions (ISO4090) | 460 x 460 x 15mm |
| Sensor array | A-Si photodiode |
| Scintillator | Cesium Scintillator |
| Resolution | 3,072 x 3,072 |
| Pixel Size | 140 μm |
| Grayscale | 16 bit |
| Housing material | Aluminum alloy |
| Weight | 3.6kg (7.9lbs) |
| Trigger mode | AED mode / Software SYNC mode |
| Calibration data | 10 sets of calibration, data can be stored in it |
| Log file | Log file, sensor data and other calibration data are available |
| Accessories | Magnetic connector cable with ethernet and power |
| Operation temperature / Humidity | 10~35°C / 15~80% |
