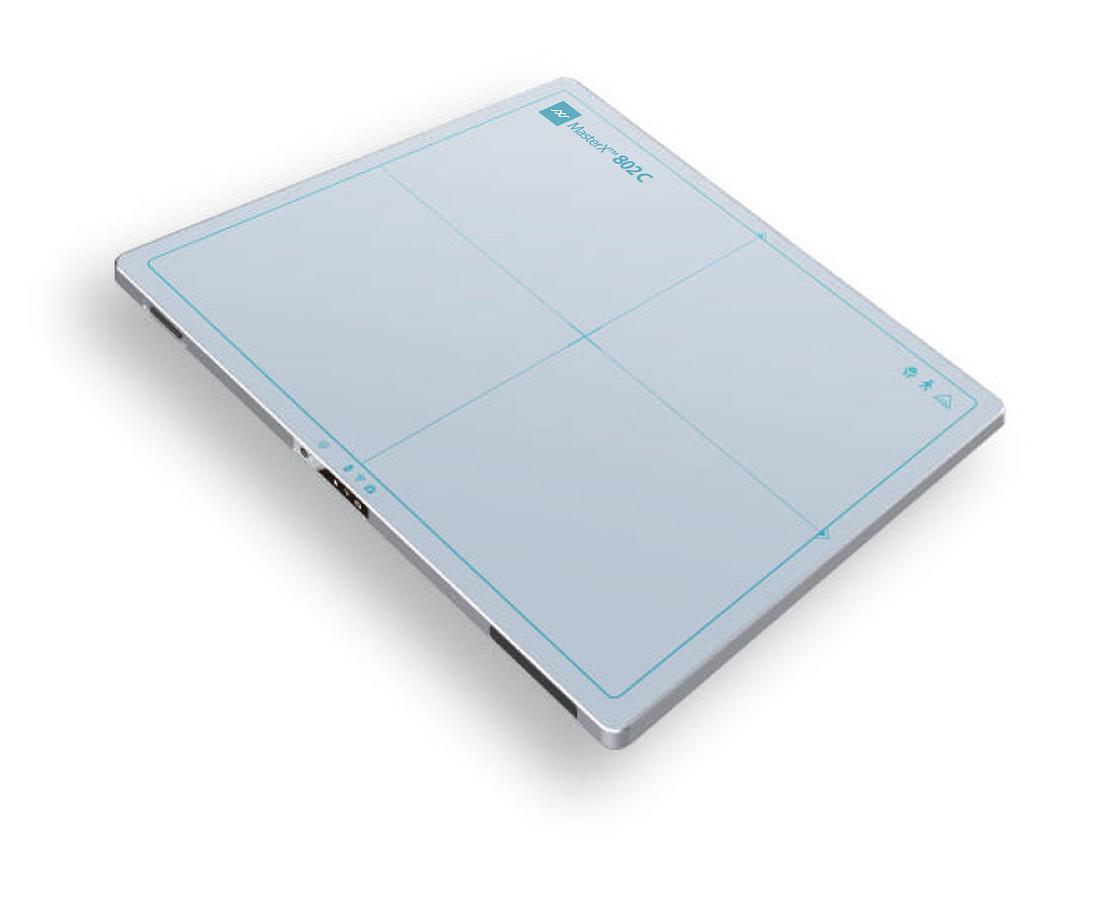

MasterX 802 Glassless 14"x17" wireless

MasterX 802 Glassless 14"x17" wireless

Contact us for price

Location:

Description

Features: • 14″x17″ CsI detector, 2 Batteries and Battery charger • 14×17 Active area (Real Image Size) with <1 second acquisition time and <3.6 cycle time • Overall Dimensions: 460 x 460 x15 mm, cassette sized • 16-bit depth – 65,535 shades of gray • CsI Direct Deposition, low dose Imaging • 140μm Pixel Pitch • Lossless AED • IP54 rated panel – dust and water resistant • Weight 9.5 lb • 5-year Manufacturer's parts warranty on DR panel • 5-year Panel Protection plan • Voyance® Acquire software • Voyance® VPacs (up to 10 viewing licenses) • 1 TB HDD Dell workstation with 24" monitor or Dell laptop

Specifications

ManufacturerMedicatech USA®
ModelMasterX 802 Glassless 14"x17" wireless
ConditionNew
Stock NumberSKU000024
Outline dimensions (ISO4090)14" x 17" | 383 x 460 x 15 mm
Sensor arrayA-Si photodiode
ScintillatorCsI
Resolution2,500 x 3,063
Pixel Size140 μm
Grayscale16 bit
Wifi802.11ac / 2 antennas / 2s scan display / AP mode
Drop height70 cm
Housing materialMg-Al alloy
Weight2.5 kg
WaterproofIPX6
Durability (Face load / Point load)300 / 120 kg
Battery autonomy8 hours*
Trigger modeAED mode
Log fileLog file, sensor data and other calibration data are available
AccessoriesBattery/ Magnetic connector cable with ethernet and power
Operation temperature / Humidity10~35°C / 15~80%
